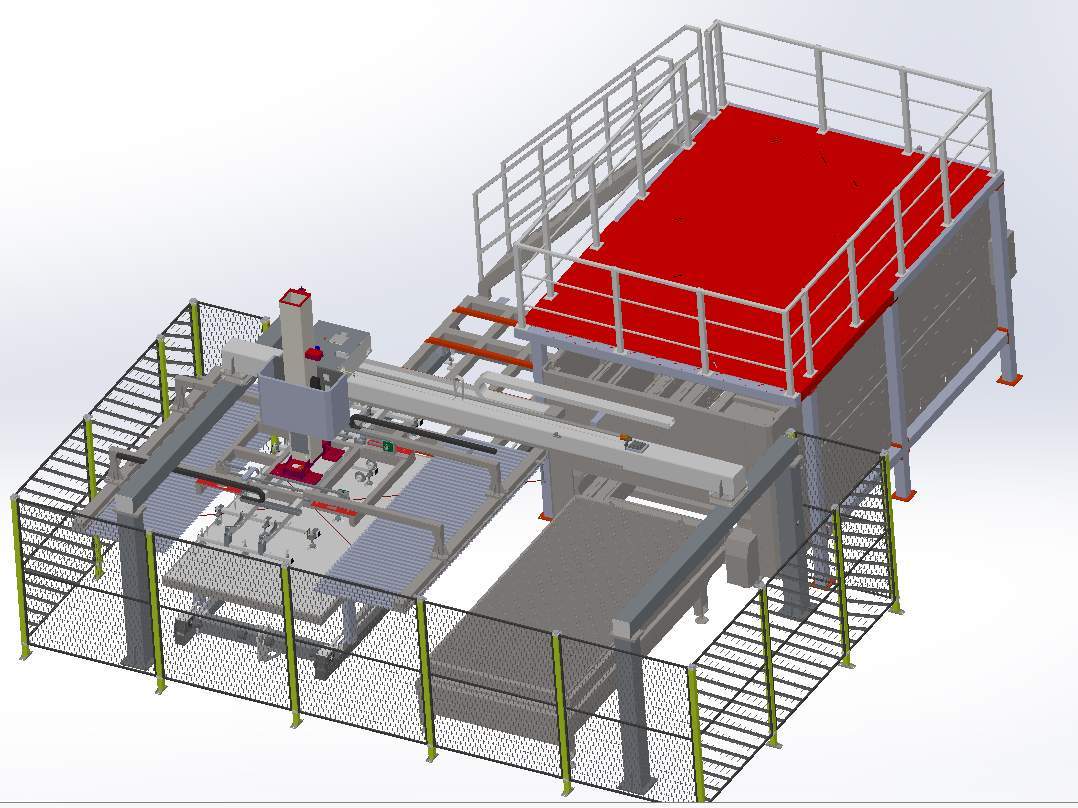

Automatic Plate Gantry Cantilever Robot for Loading And Unloading

1. Equipped with a touch control screen, it supports one click switching between automatic and manual feeding modes, adapting to diverse production conditions and flexibly responding to different job requirements.

2. The device parameter settings, operation status monitoring, and device debugging are all integrated into the touch screen, making touch operation intuitive and convenient, without the need for complex peripheral operations.

3. The overall motion mechanism of the machine is equipped with high-speed and high torque servo motors, paired with original imported linear guides. The equipment operates at a fast speed, with high repeatability and positioning accuracy, and runs smoothly without any lag.

4. The vacuum suction cup supports manual free adjustment of installation position; Each suction cup is equipped with an independent control air valve, which can be opened and closed separately, and is suitable for grasping and transporting various length and width specifications of boards.

5. The robotic arm is equipped with a pneumatic rotating mechanism, which can achieve precise 90 ° flipping of the board. It is compatible with both horizontal and vertical feeding scenarios, making it more versatile.

Core Advantages of Automatic Plate Gantry Cantilever Robot for Loading and Unloading

1. High performance vacuum suction cup

Using high-quality suction cups, with sufficient vacuum suction force and adjustable suction range, it can stably grasp different sizes of boards and has strong adaptability for automated feeding.

2. High strength and stable body

The gantry truss is made of thickened steel structural components welded together, with a rigid and stable load-bearing body; The surface of the whole machine is treated with electrostatic spraying, which is rust proof, wear-resistant, and has a longer service life.

3. Integrated intelligent numerical control system

Integrated automatic/manual dual operation mode, parameter setting, real-time monitoring, and device debugging are all completed by the touch screen, making human-computer interaction simple and easy to use, reducing the operating threshold.

4. Significantly improve overall production efficiency

The device operates stably and effectively improves the quality of finished product processing; Replacing manual loading and unloading significantly improves the production efficiency of the entire production line, optimizes the working environment in the workshop, and adapts to rapid product changeover production, helping enterprises achieve flexible processing.
