Sheet remainder storage/ rack-roll out sheet metal storage racking

Sheet remainder storage rack is drawer sliding type, designed to store small cut sheets and leftover panels after laser cutting & sheet metal processing.

Single layer independent pull-out.No need to shift upper sheets. Classified storage prevents scratch and deformation, improves reuse rate of surplus materials and saves aisle space

Pneumatic cantilever sheet loading and loading machine

Pneumatic cantilever sheet loading and loading machine is specially designed for sheet metal storage rack feeding.Suitable for steel sheets, stainless steel plates, aluminum panels.

Operator swings the cantilever above sheet storage area, lowers suction cups by cylinder, turns on vacuum to grip sheets firmly.It can work with drawer-type sheet metal storage racks.

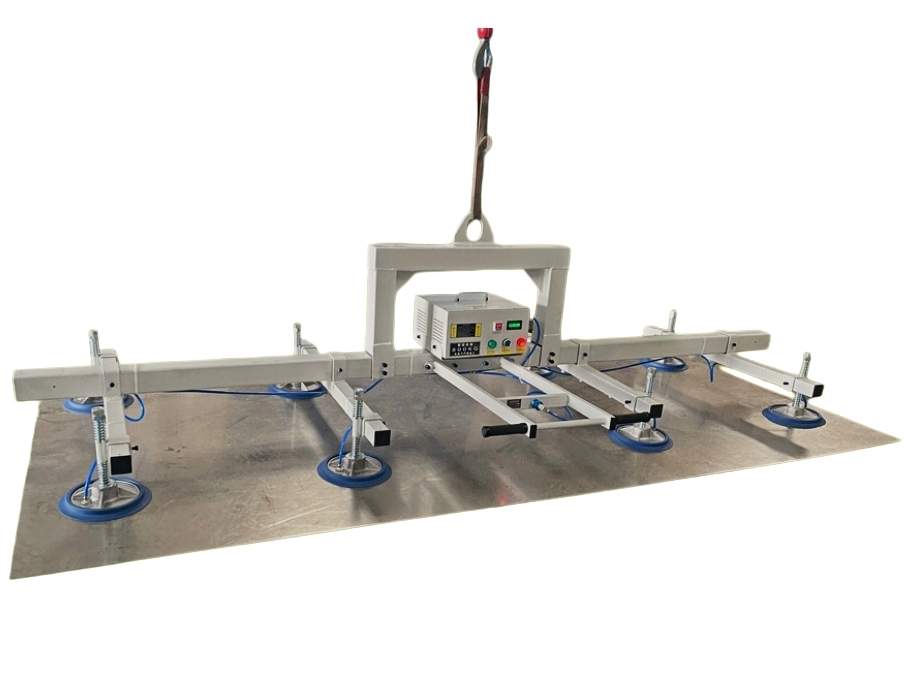

Overhead crane type vacuum sheet lifter

Overhead crane type vacuum sheet lifter is matched with existing workshop overhead crane, used for transporting steel sheets, stainless steel plates, aluminum panels.

During operation, Move the vacuum lifter above sheets via overhead crane, lower cups to contact panels and activate vacuum suction. Lift the sheet, transfer to laser cutting table and release vacuum to finish loading.

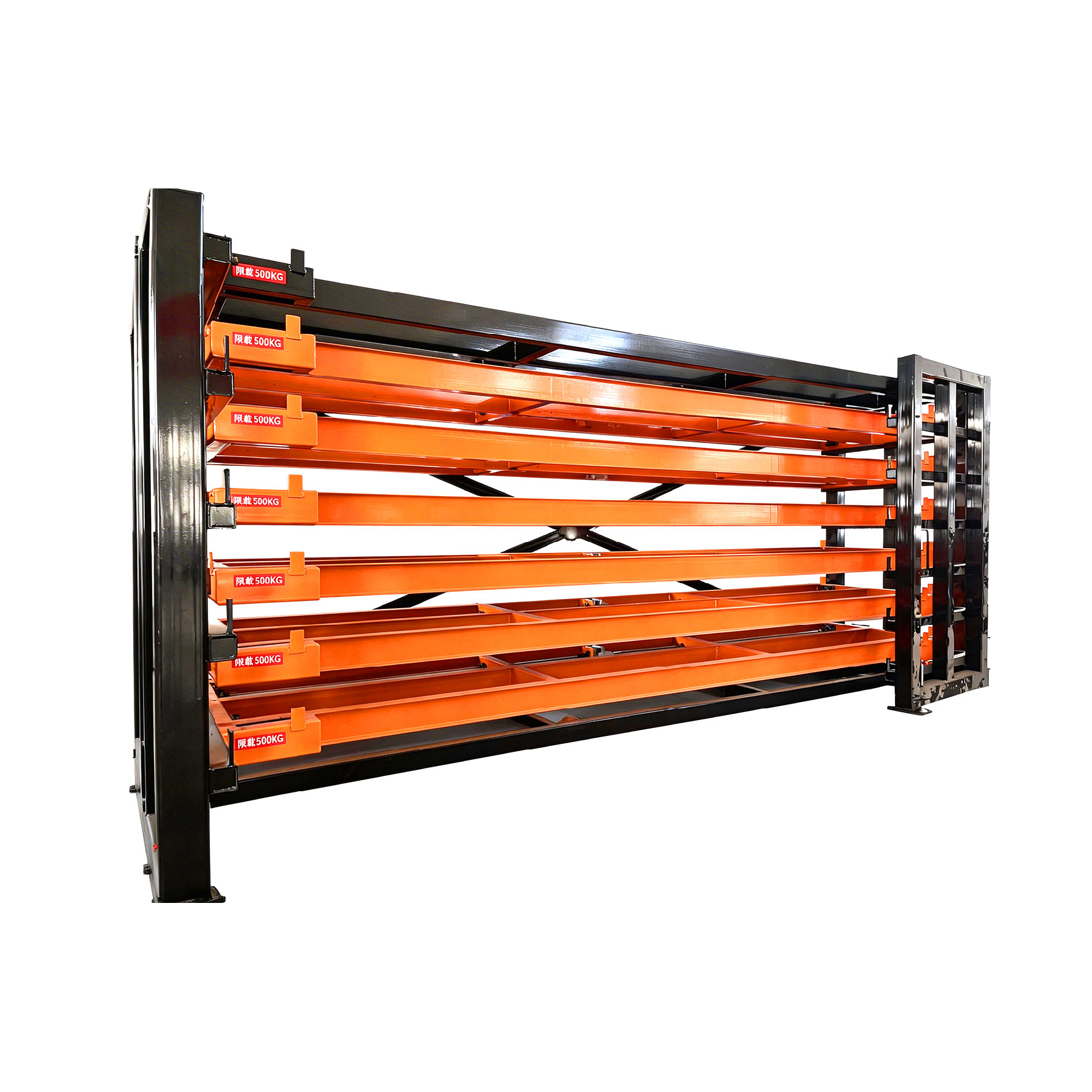

Motorized Electrical Sheet Metal Storage Rack

Electric sheet rack is a heavy-duty dedicated storage equipment combining pull-out drawers and electric drive. Ideal for steel plates, stainless steel plates, aluminum plates, copper plates, sheet metal panels and decorative large panels.

Operator Select the target layer through the touch screen or wireless remote. The corresponding drawer extends smoothly and stops automatically.

Manual hand-crank telescopic cantilever pipe storage rack

Hand-crank pipe storage rack adopts manual gear transmission, no power supply needed. suitable for steel pipes, square tubes, aluminum profiles, round bars and long profiles.

Rotate the crank smoothly, the cantilever arm extends outward along gear and rack transmission system. After full extension, pipes and long profiles are fully accessible for overhead crane lifting.

Hand-crank Manual sheet metal storage rack.

Manual sheet metal storage rack no power supply required.Ideal for storing steel sheets, stainless steel plates, aluminum sheets and wood panels.

Rotate the crank steadily, the drawer tray extends smoothly outward on heavy-duty guide rails. When fully extended, sheets are fully exposed for vertical loading & unloading with overhead crane or vacuum lifter.

Electrical long material Tube Storage Rack

Electric pipe storage rack adopts motor-driven gear and rack transmission,Suitable for storing steel pipes, square tubes, round bars, aluminum profiles and other long materials.

Operator selects target layer via remote controller or touch screen. The motor drives gears meshing with racks to move cantilever rams smoothly.When fully extended, long pipes and aluminum profiles can be lifted directly by overhead crane.

Double Tower Sheet Metal Storage system

The vertical double-tower design significantly increases storage capacity, with multiple safety sensors fitted to guarantee stable and safe running.

Operate it via touch screen select the target storage layer on the interface. The lifting carriage moves vertically between two towers to the designated floor, and the drawer stretches out with precise automatic positioning.

Automated Single Tower Sheet Metal Storage Rack

Automated sheet metal storage system adopts electric pull-out drawers. It stores various flat panels vertically, greatly saving floor space, avoiding plate damage and cutting labor costs. Complete safety protection devices equipped.

Tap touch screen,drawers extend with precise automatic positioning for neat sheet storage. Workers take sheets conveniently with vacuum lifter/Forklift.
