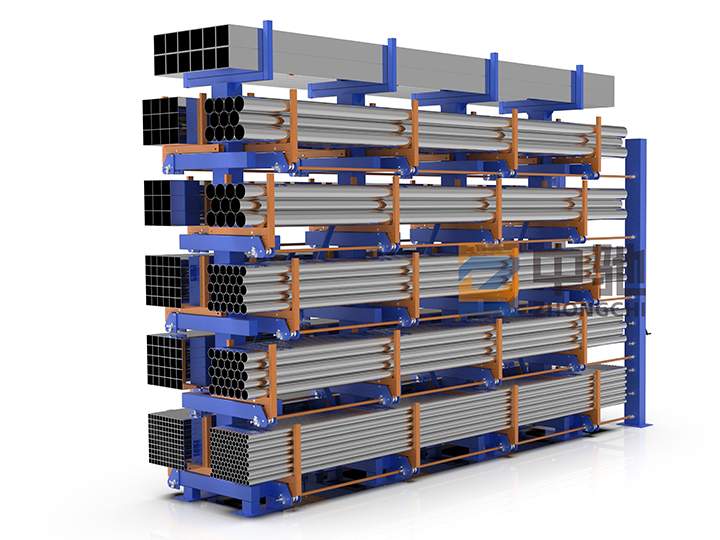

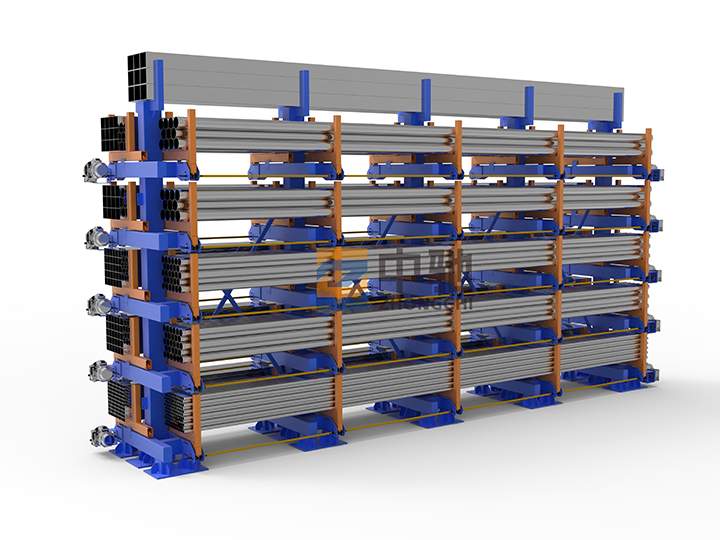

Electric telescopic cantilever tube storage rack widely used in large-scale steel structure factories, pipe trading centers, rail transit parts, and heavy machinery processing enterprises, it replaces traditional ground stacking and hand cranked shelves to achieve automated telescopic storage and retrieval. The equipment is equipped with a motor-driven cantilever telescopic structure, which is independently electrically controlled in layers. Each group of cantilevers can be individually extended and retracted with one click. The long materials are classified and placed in layers, and the materials are visually managed. Paired with a crane and crane lifting equipment, the entire layer of materials can be quickly lifted without manual labor, completely solving the pain points of heavy long profile material retrieval, low storage and retrieval efficiency, and disorderly stacking in the warehouse.

Core advantages of Electric telescopic cantilever tube storage rack

1.Electric one key telescopic, labor-saving and efficient

Equipped with a silent deceleration motor, dual control with button remote control, one key telescopic cantilever, no need for manual hand cranking, easy operation by a single person for heavy-duty pipes, and long-term operation is not easy to fatigue.

2.Three dimensional layered storage, saving space

Vertical multi-layer three-dimensional layout, vertical layered isolation storage of long profiles, eliminating the occupation of large areas of flat ground, improving warehouse space utilization by 75%, and preventing pipe stacking, bending, and paint scraping.

3.Heavy duty thickened structure with strong load-bearing capacity

Is welded with thickened rectangular tube, and the columns and cantilevers are reinforced together. The single-layer cantilever can bear 1-6 tons, and is suitable for ultra heavy solid steel bars and large-diameter thick walled pipes. The load-bearing structure is stable and not easily twisted.

4.Precise electronic control start stop and safety protection

Equipped with limit brakes, overload power-off, collision protection devices, automatic stop when extended and retracted, silent and stable operation without impact, avoiding the risk of cantilever slipping out and material falling, with a high safety factor.

5.Intelligent customization with wide adaptability

Supports customization of floor height, cantilever quantity, and telescopic stroke based on the length and width of the factory building, maximum length of materials, single stack load-bearing capacity, and can be equipped with remote control, digital positioning, and anti-collision guardrail optional functions.
