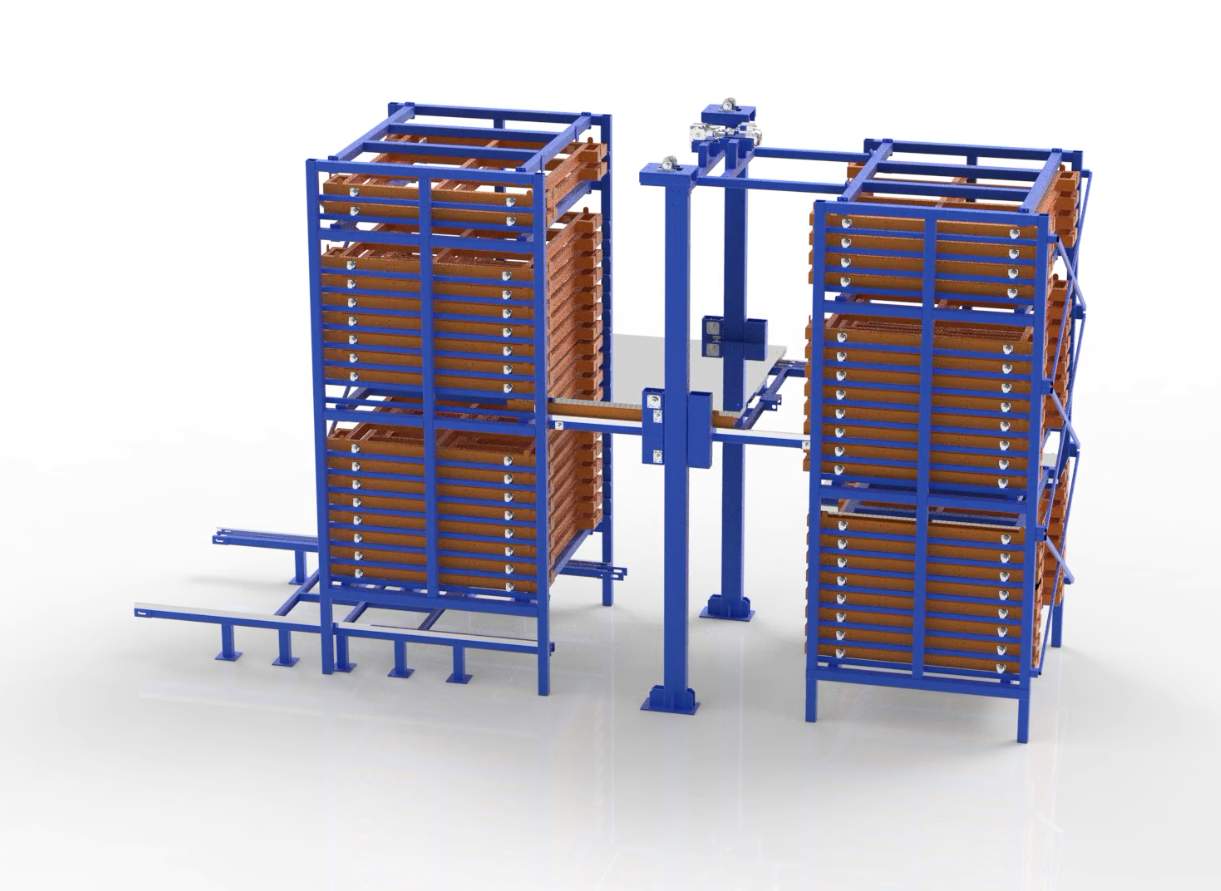

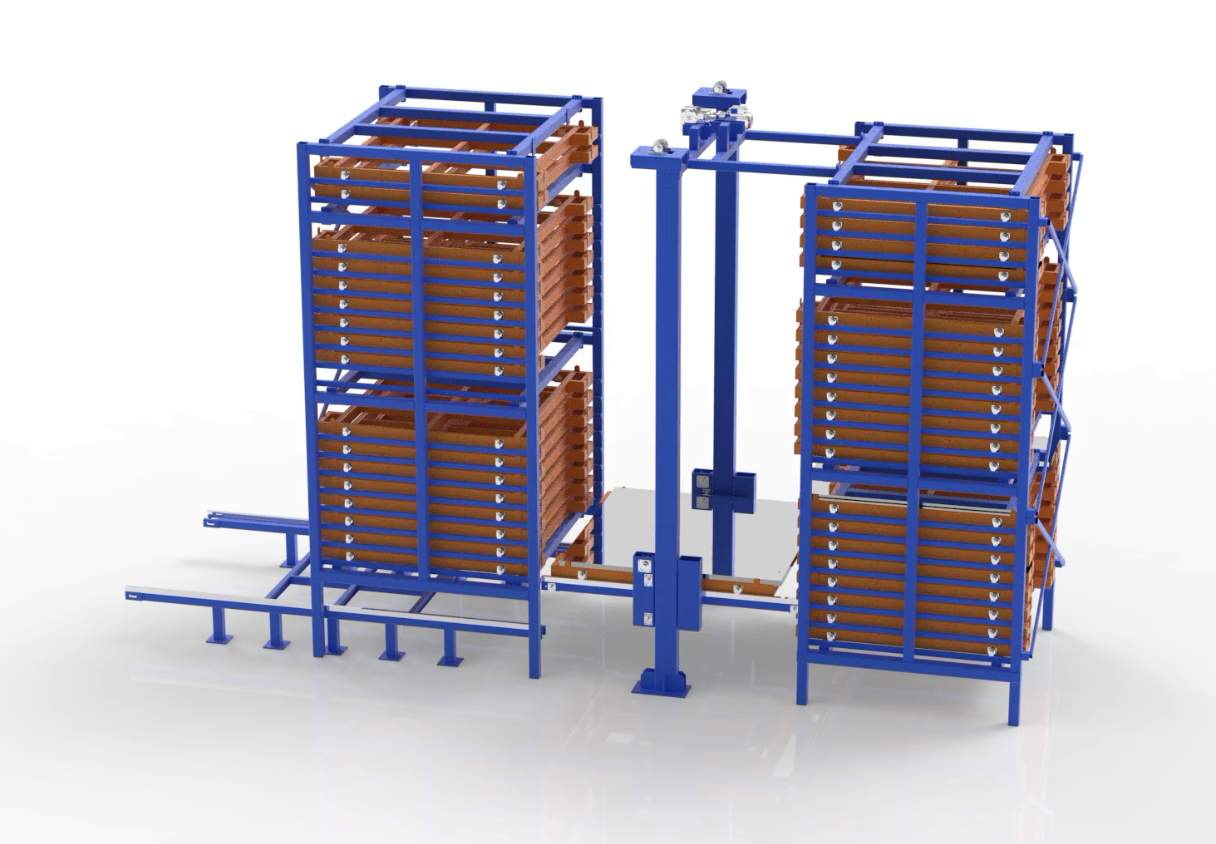

Double Tower Sheet Metal Plate Storage Rack

The automatic sheet metal storage rack adopts Q355B thickened steel frame, relying on servo chains on both sides to drive each independent drawer on each floor; Paired with Huichuan/Siemens PLC control system, the board number is inputted through the touch screen, and the drawer automatically extends to retrieve the material; It can be integrated with vacuum feeding machines, cranes, laser cutting machines, and factory MES systems to achieve full automation of sheet material storage, retrieval, and discharge. Say goodbye to the pain points of traditional floor tiling and stacking, manual dragging of steel plates, difficulty in finding materials, and sheet metal extrusion scratches in the industry, and help sheet metal processing plants and steel enterprises achieve digital warehouse management, reduce manual input, improve plant utilization, and assist in the intelligent upgrading of factories.

Core Advantages of automatic Sheet Metal Storage Rack

1.Fully automatic servo drive, precise positioning:Equipped with servo motor, precision reducer, and double-sided heavy-duty chain transmission, it differs from ordinary electric models in that it has soft start stop, no shaking, precise positioning, minimal drawer extension error, and is not easily damaged during high-frequency use. It is suitable for long-term automated operations in factories.

2. Layered independent drawer structure, with non interfering access:

Each drawer is independently controlled and expandable, allowing for the retrieval of any layer of board without the need to move or stack, truly achieving the goal of "retrieving materials from any layer at any time".

3.Heavy duty Q355B integral steel structure, stable load capacity:The whole machine is welded with thickened I-beams and square tubes, and the base is widened and reinforced. The single-layer load capacity can be selected from 3-10 tons, and it will not deform or shake under heavy loads. It is suitable for long-term storage of thick and heavy plates.

4. Adapt to automated assembly lines to enhance overall production capacity:

It can be combined with vacuum feeding machines, cranes, and laser cutting machines to achieve automated assembly lines for warehousing, feeding, and cutting, greatly improving workshop production efficiency.

5. Long service life, simple maintenance, high cost-effectiveness:Industrial grade accessories, heavy-duty structures, wear-resistant transmission components, stable and durable, low failure rate, visualized fault codes, simple maintenance, long-term comprehensive cost far lower than traditional stacking mode.

Technical Parameters of automatic Sheet Metal Storage Rack
