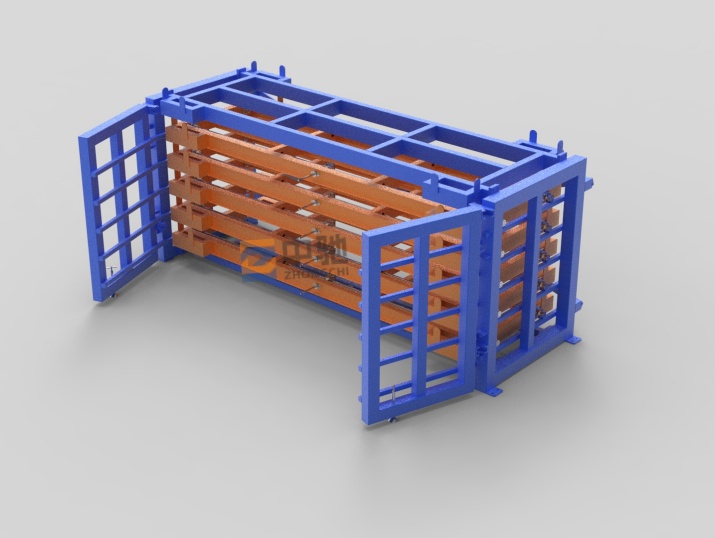

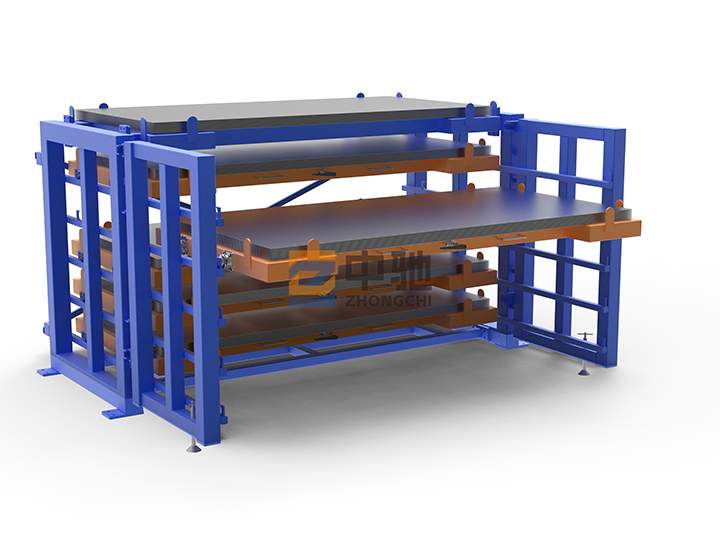

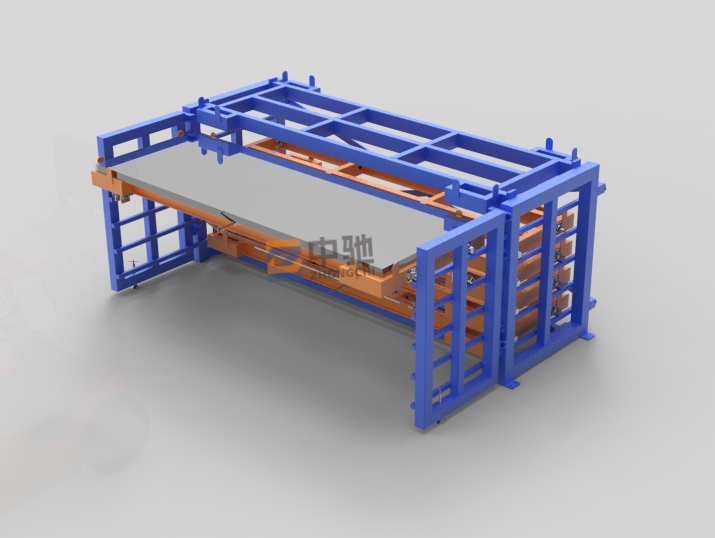

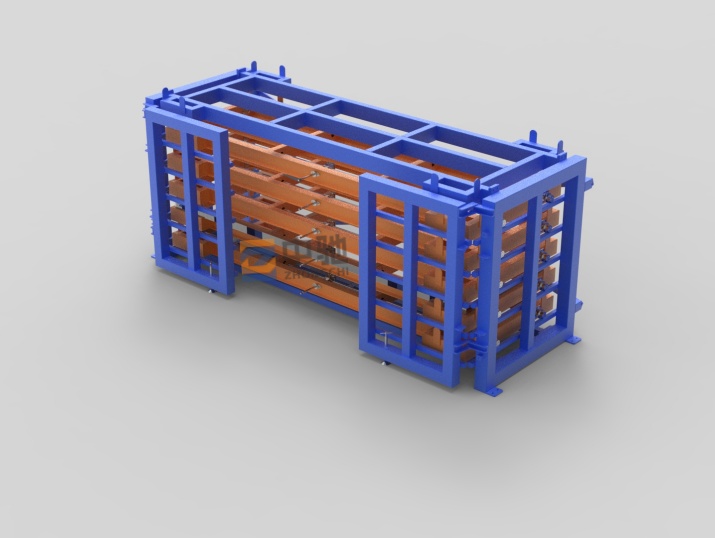

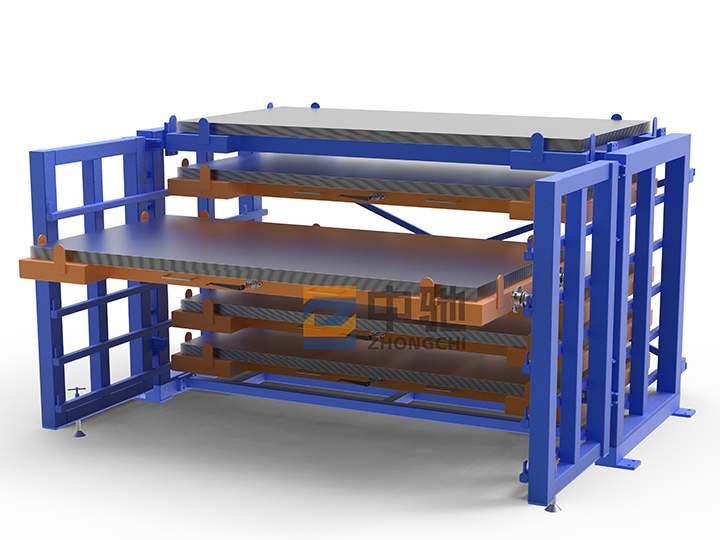

Manual Drawer-Type Sheet Metal Storage Rack
The drawer type tray vertical storage rack is dedicated for bulky, heavy duty flat sheets including steel, aluminum, stainless steel, acrylic, plastic, MDF and decorative panels. It replaces inefficient floor stacked storage and serves as a popular upgrade choice for laser cutting, sheet metal, hardware, advertising and building material factories.
Inquire About This ProductPhone: +86 132 8778 9688Product Details
The Sheet Metal Storage Rack adopts tray pull-out three-dimensional structure, with multiple layers of independent trays for layered storage. Each layer can be individually pull-out and accessed, achieving the classification and zoning storage of boards and clear and orderly materials. During the homework process, a single person can quickly retrieve and release materials without the need to flip the upper layer of boards or transport the entire stack, fundamentally solving the many storage pain points of traditional board stacking
Advantages of Drawer-Type Sheet Metal Storage Rack
1. Fully manual operation, energy-saving and hassle-free
No motor, electrical system, or control unit required. Material access and storage are completed manually through push-pull operation, making the system simple, reliable, and low-maintenance.
2. Space-saving design with high warehouse utilization
Adopts a vertical layered structure for classified sheet storage, eliminating floor stacking. It significantly reduces floor space occupation and can improve warehouse space utilization up to 70%. It also prevents deformation, scratching, and damage caused by multi-layer stacking.
3. Heavy-duty structure with strong load capacity
Built with thickened steel welded construction. Uprights, beams, and base are reinforced for stability. Each layer supports a load capacity of 1–5 tons, making it suitable for heavy steel plates, thick aluminum sheets, and solid wood panels. Even load distribution ensures high stability and safety with minimal deformation risk.
4. Easy access, time-saving and labor-saving
Smooth and quiet sliding rail system enables effortless manual pulling. A single operator can easily store or retrieve sheets without assistance from lifting equipment, greatly improving warehouse efficiency.
5. Flexible customization with wide adaptability
Dimensions, layer quantity, spacing, and load capacity can be customized according to warehouse size, sheet dimensions, thickness, and weight requirements. It is suitable for oversized sheets as well as irregular-shaped materials.
Technical Specifications of Drawer-Type Sheet Metal Storage Rack
Item | Technical Specifications | ||
Model | ZC-MP3015 | ZC-MP4016 | ZC-MP6030 |
The loading capacity of Single Layer | 2ton/3ton/4ton | 2ton/3ton/4ton | 2ton/3ton/4ton |
The Number of Layer | 3-8 layers | 3-8 layers | 3-8 layers |
Suitable | 3000*1500mm | 4000*1600mm | 6000*3000mm |
Net Space between drawers | 100mm | 100mm | 100mm |
Drawer tray pull stroke | 1500mm | 1600mm | 3000mm |
Operation Mode | Manual push out | Manual push | Manual push |
Power | None | None | None |
Pull-out Speed | Manual control | Manual control | Manual control |
Drawer type sheet metal storage rack can be customized according to warehouse size, Plate length, width, thickness, and load-capacity requirements | |||
